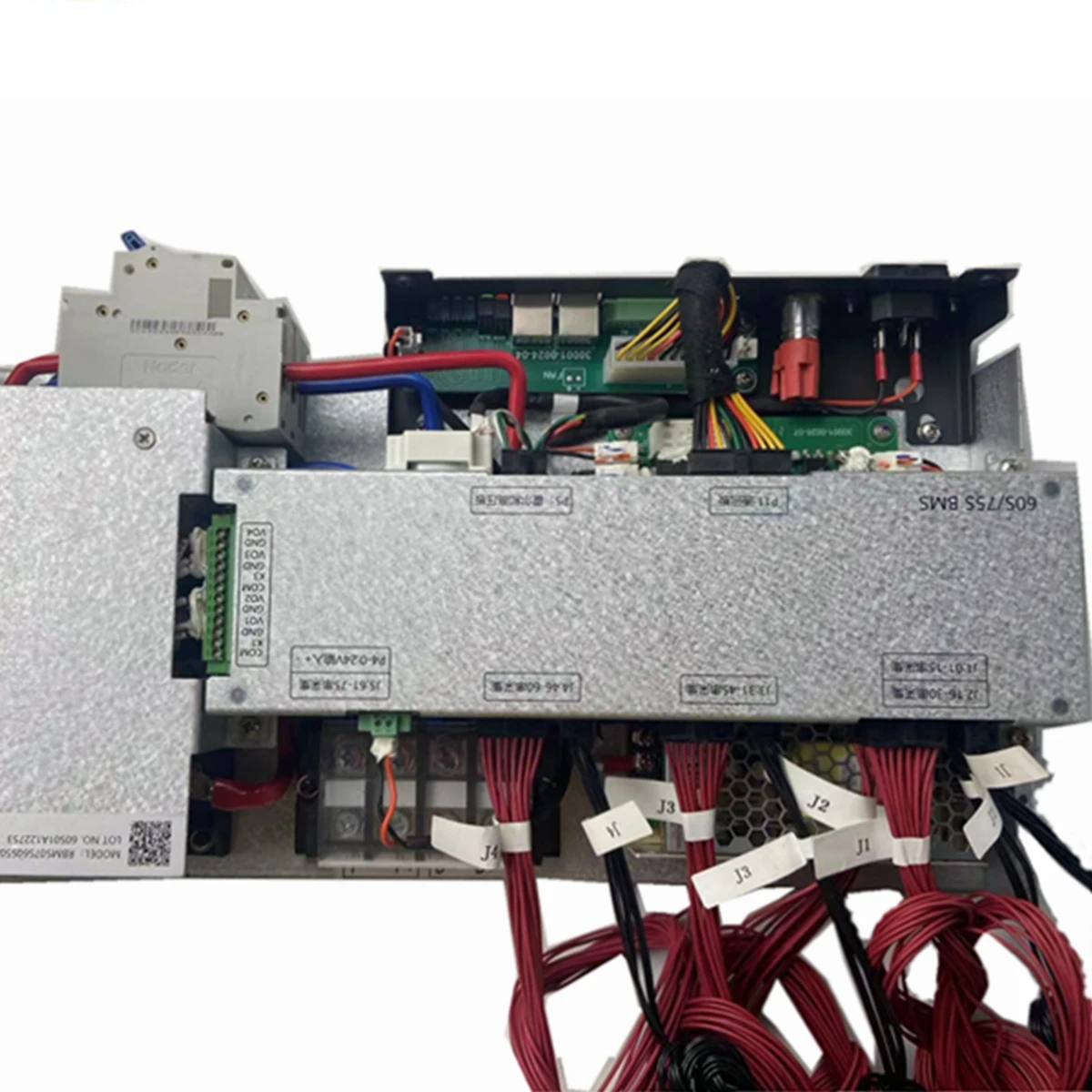

Integrated BMS Battery Management System with 3 Years Warranty for Solar Energy Storage Lithium Battery Packs

Name: Integrated BMS Battery Management System with 3 Years Warranty for Solar Energy Storage Lithium Battery Packs
Brand: GCE/OEM/ODM
Price: 613.80 USD

Buy cheap Integrated BMS Battery Management System with 3 Years Warranty for Solar Energy Storage Lithium Battery Packs product

Place of Origin : Hunan, China

Brand Name : GCE/OEM/ODM

Model Number : RBMS07S75S100A

Certification : CE/RoHS/MSDS

MOQ : 2

Price : $613.80-645.70

Voltage : 240V

Current : 50A/100A

Dimension : 410*232*128 MM

Battery type : Lifepo4/lithium Battery

Communication mode : RS485/CAN/LAN/Bluetooth

Strings : 30s/45s/60s/75s

Balance current : 100mA ± 10mA

Temperature sampling : 6 Battery temperature(2*3) for 30S

Temperature accuracy : ± 2℃

Voltage accuracy : single cell ±20mV

Short circuit protection : 7.5KA 20ms

Power consumption : ≤10W

Withstand voltage : 1800VDC 1mA 1min

Operating temperature : Charging: -10～75℃, Discharging: -20 to 75℃, Storage: -40 to +75℃

Operating humidity : <90 RH(40℃±2℃)

Contact Now

Product Specification

Product Name

New Arrival High Voltage BMS 75S 240V 100A Integrated BMS For Solar Energy storage system lithium battery pack solution

Integrated BMS Battery Management System with 3 Years Warranty for Solar Energy Storage Lithium Battery Packs

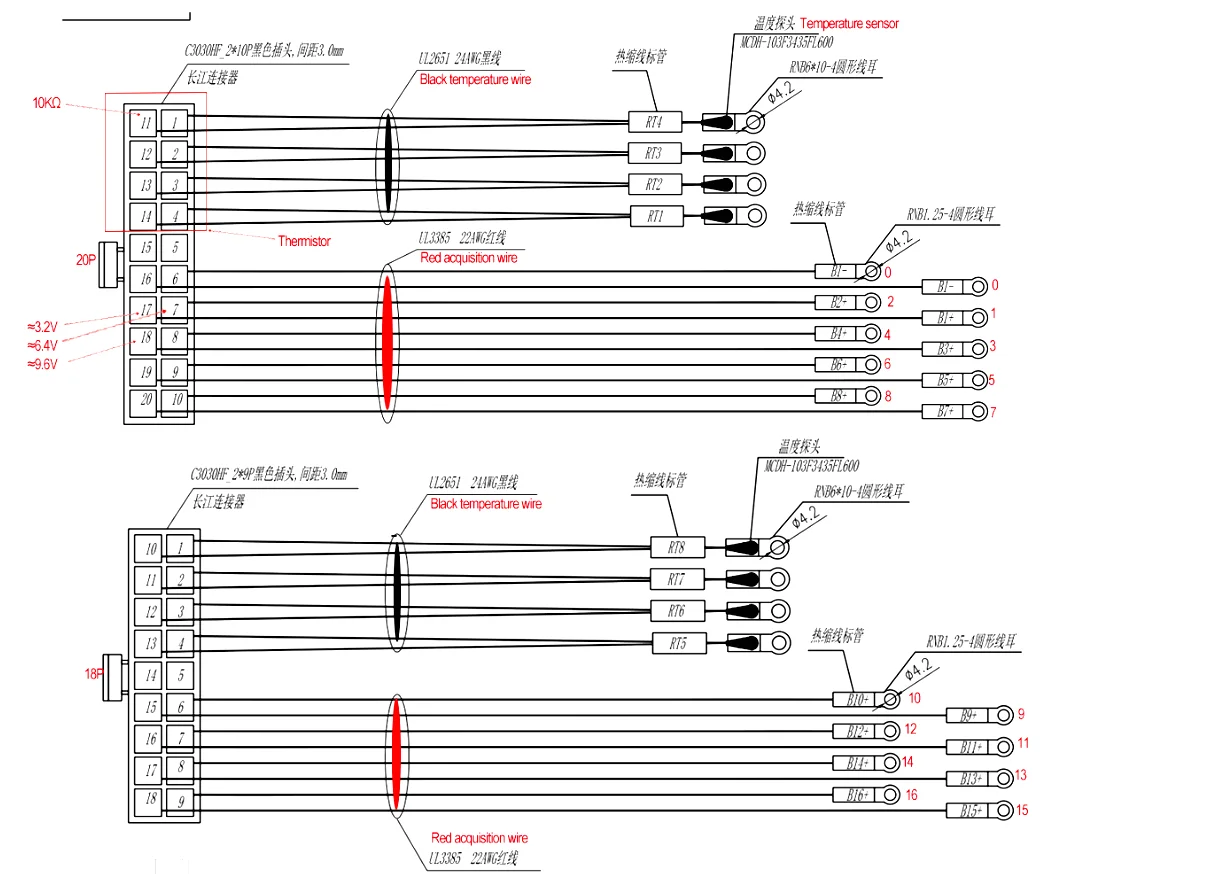

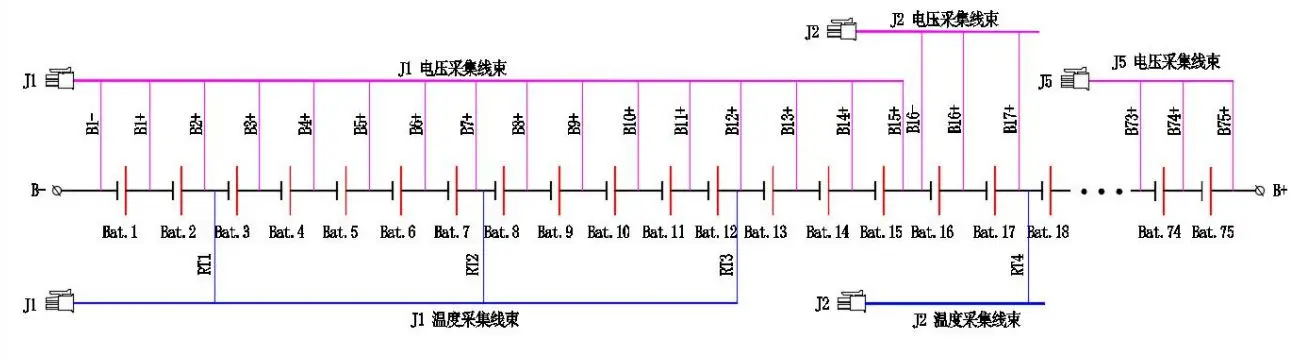

Accessories

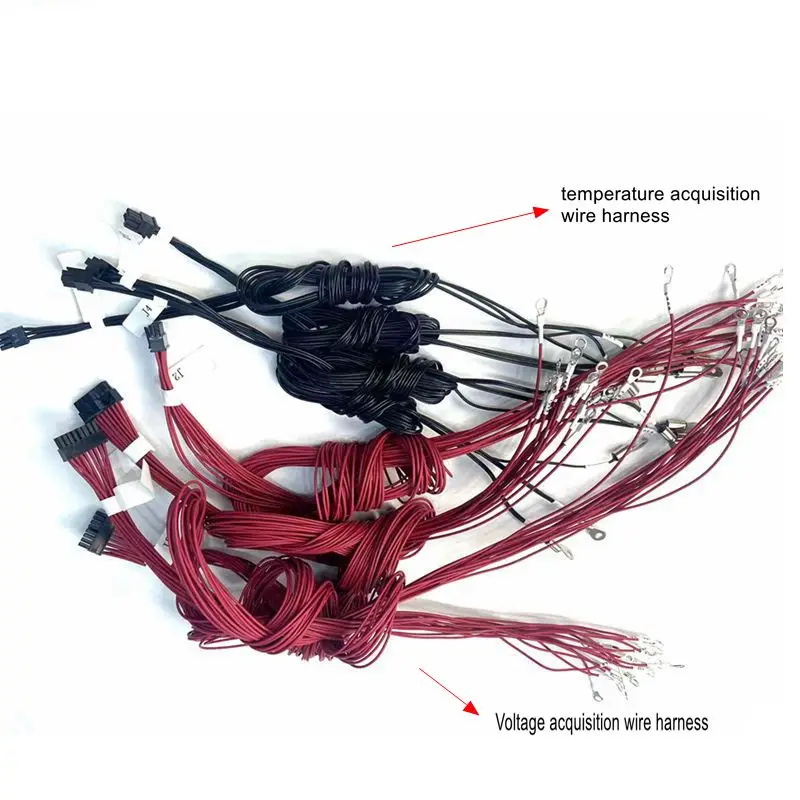

Wire Harness

Standard 1.2m voltage collection line （Red) 4pcs（60S）；5pcs（75S）

Standard 1.2m temperature acquisition line （Black)

4pcs（60S）；5pcs（75S）

Item	Decriptions
Product Name	Integrated BMS
Model No	RBMS07S75S50A
Startup mode	DC start (optional AC and DC starter)
Number of strings	75S( 15*5S)	Standalone
Balance	Equilibrium type	Passive resistance equalization
Balance		Balanced current	100mA ± 10mA(Single cell 3.4V ）
Temperature Sampling	Numbers	6 Battery temperature(2*3) for 30S
Temperature Sampling		Sampling accuracy	± 2℃
Voltage Sampling	Sampling accuracy	single cell ±20mV
SOC%	battery indicator	25 for 0%-25% 50 for 25%-50% 75 for 50%-75% 100 for 75%-100%
_{Communication mode}	CAN: 1 channel (communication with PCs / UPS) RS485: 1 channel (communication with upper computer / PCS / UPS) Bluetooth: optional (android app available) GPRS: optional,
Short circuit protection	Support 7.5KA 20ms
Display mode	6-digit LED indicator, including 1-bit fault indication, 1-bit operation indication, 4-bit SOC power indication HMI display: optional
Rated Current	50A/100A (both are optional accroding to the customers's need)
Maximum load of power components	50A system transient: 70A/10S Steady-state：100A transient state：150A/10S
Alarm level	1 Level
Power Consumption	≤10W
Withstand voltage rating	1800VDC 1mA 1min
Safety certification	Comply with CE certification standards
Protection level	2 two levels Level 1 cut off charge / discharge Level 2 micro cut-off switch, system power down
Operating Temperature	Charging : －10～75℃ Discharging : -20 to 75℃ Storage : -40 to +75℃
Operating humidity range	<90 RH(40℃±2℃)

Product Feature

1.It is high integrated with less installation space.

2.Long life cycle, >3000 times at 80% DOD.
3.It without heavy metals and environment friendly.
4.Maintenance free,there is no memory effect.
5.Internal BMS with full protection,battery has high voltage protection with higher reliability.

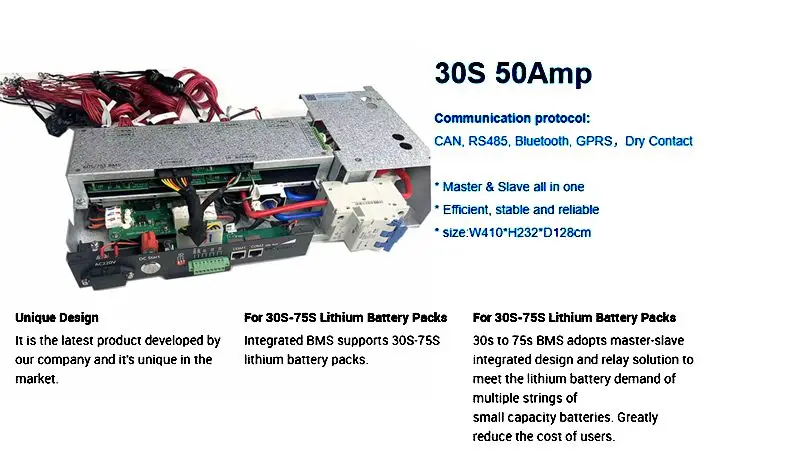

6. Master and Slave all in one.

Application

◎ Battery Energy Storage System(BESS)
◎ Off-grid energy storage
◎ Data Center
◎ Grid frequency modulation energy storage
◎ Track power/traction
◎ LFP UPS power supply

Company Profile

Hunan GCE Technology Co., Ltd.

A high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. We produce BMS voltage from 48V to 1000V with master and slave three-level structure solution.

Our BMS products adopt a distributed architecture,modular design concept, are highly configurable, easy to assemble, debug, and maintain, and can meet the needs of a variety of projects. Intelligent modular high-voltage BMS which is suitable for LFP & NMC batteries in BESS, UPS, EV & For energy storage system Lithium-ion battery solution Off grid Solar Energy Storage System as well as Telecom Base Station battery Storage .

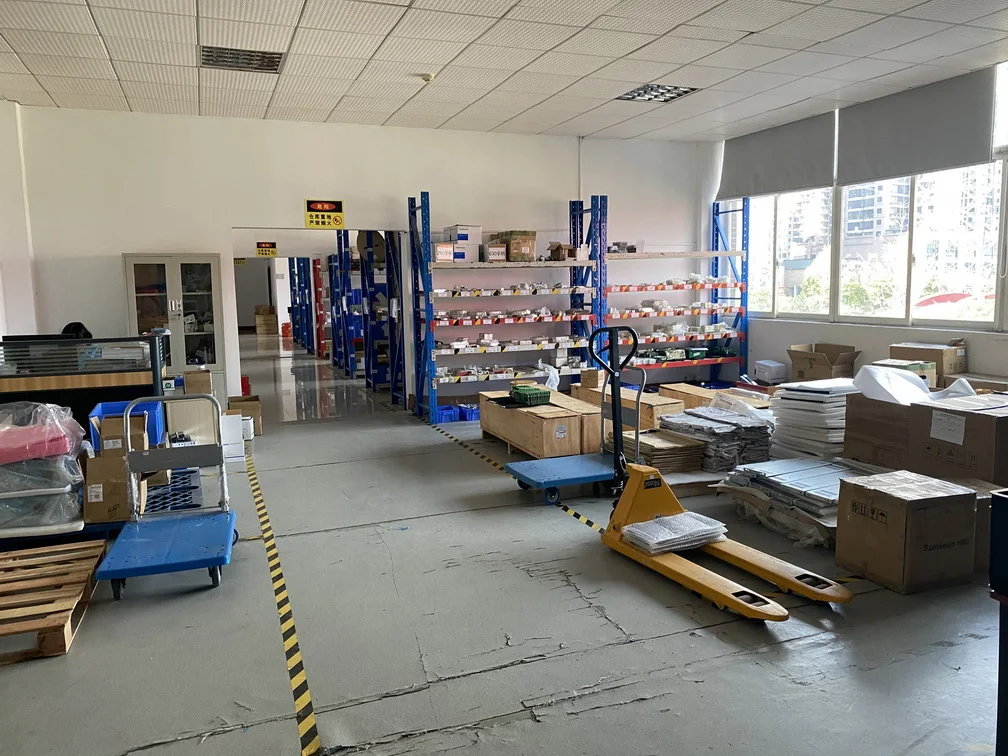

Warehouse

Production Line

Assembling Line

Recommend Products

Packaging and Shipping

FAQ

1. Are you a manufacturer or simply a trading company?
We are a manufacturer, and we sincerely welcome you to visit our factory.

2.Can I get some samples?
Yes, a sample order is available for quality checking and market testing.

3. What kind of cells are applicable to this Battery Management System?
LFP, NMC, LTO

4. How about the delivery time?
The delivery time will usually take about 15 to 20 working days accordingly to the specification of your order and quantity.

5.What are your terms of payment?
For sample order or small orders usually will require full payment in advance. For Big amount orders can be 30%-50% deposit and the rest payment should be payment before shipping .

Advanced T/T is the main payment term, and other payment terms are negotiable.

6.What are your warranty terms?
We offer a 3-year warranty for RBMS,1-year warranty for PCB.

7. Can you produce BMS with customization requirements?
Yes, based on the order quantity, we can make some small adjustments.

8. How does your factory do regarding quality control?
Quality always comes first. All our products go through strict quality control processes from incoming material to the assembling process. Each product will be tested before packing & shipping.

9. What Trade Terms are available?
No limitation for trade terms. EXW/FOB/CFR are all available.Moreover,we can send BMS via DHL&UPS&FEDEX quickly and easily.other shipping ways can also be negotiable and available.

10. Is your BMS easy and convenient to install&test?
This is our the 4th generation high voltage bms.It's an overall bms solution, that is to say, you don't need professional technology to install our high-voltage BMS to form a complete battery system.

11.What benefits do customers get?
Our high voltage BMS has complete battery charge and discharge control logic and balance function between batteries. We can also set various parameters of the system according to the actual needs of customers to ensure the stability, reliability and efficient performance of the system.
